Herstellerspezialist für Magnetventil-Lösungen
Unser Produktportfolio beinhaltet direktgesteuerte-, vorgesteuerte- und zwangsgesteuerte 2/2-Wege Magnetventile sowie direktgesteuerte 3/2-Wege Magnetventile und Zubehör.
Als ausgewiesener Spezialist stehen wir Ihnen gerne mit unserem gesamten Know-how zur Seite und entwickeln Ihre spezifische Sonderlösung.
Als ausgewiesener Spezialist stehen wir Ihnen gerne mit unserem gesamten Know-how zur Seite und entwickeln Ihre spezifische Sonderlösung.
Solenoid Valves Types
Direct Operated Valves

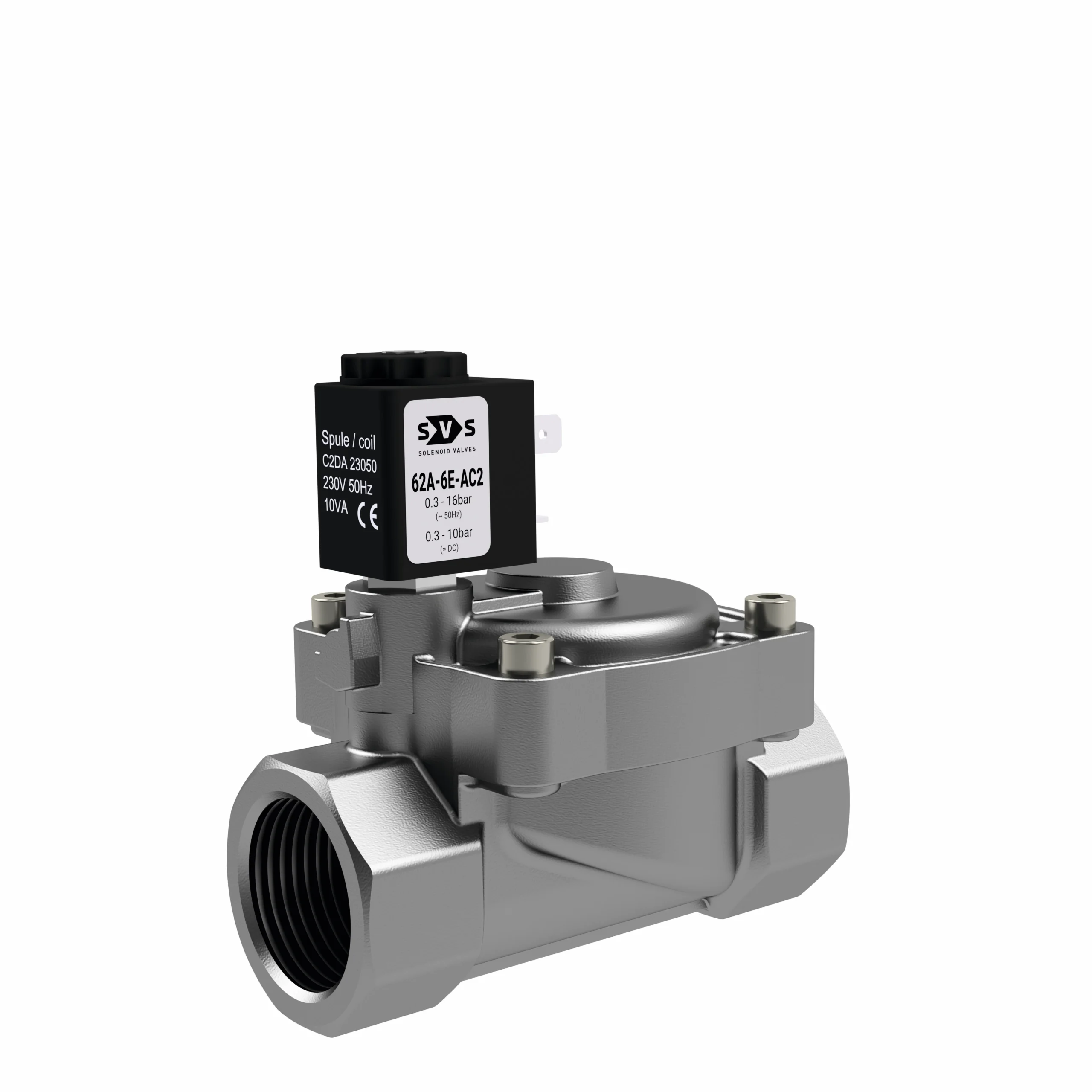

Pilot Operated Valves
Force Pilot Operated Valves
3/2-way valves
Valves for High Flow Rates
Valves for High Pressure

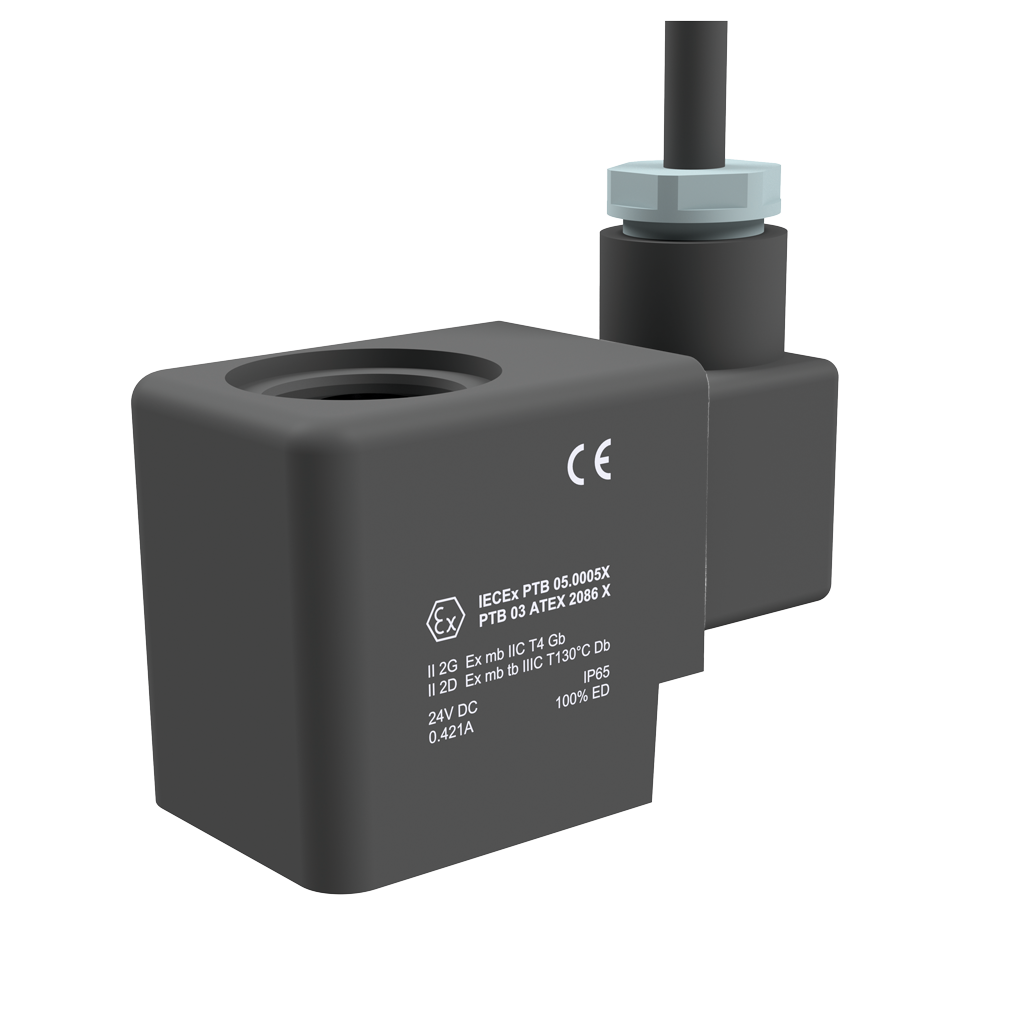

Valves with ATEX Coils
Coils and Connectors
Coils
| ambient temperature | -20°C to +50°C, higher acceptable ambient temperature range on request |
|---|---|
| fluid temperature | see specifications of the particular coil |
| material | winding: copper, temperature class H (180°C) magnetic plate: steel zinc plated encapsulation material: see specifications of the particular type |
| standard voltage | 24 V DC, 24 V 50Hz, 230 V 50Hz |
| non-standard voltage on request | 6 – 200 V DC, 12 – 250 V 50Hz, please note – minimum quantities |
| general duty cycle | 100%, continuous operation unless stated otherwise |
| acceptable voltage tolerance | ±10% |
| non-standard duty cycle | For coils with duty cycle < 100% the maximum duty cycle time is 2 min for systems 5, 7 and 9, respectively 3 min for systems 13, 16 and 19 according to VDE 0580. |
| protection class | IP65 according to DIN EN 60529 (DIN 40050) only with correctly mounted connector and profile seal. |
| non-standard version | please note – minimum quantities must be ordered for non-standard types |
| ambient temperature | -20°C to +50°C, higher acceptable ambient temperature range on request |
|---|---|
| fluid temperature | see specifications of the particular coil |
| material | winding: copper, temperature class H (180°C) magnetic plate: steel zinc plated encapsulation material: see specifications of the particular type |
| standard voltage | 24 V DC, 24 V 50Hz, 230 V 50Hz |
| non-standard voltage on request | 6 – 200 V DC, 12 – 250 V 50Hz, please note – minimum quantities |
| general duty cycle | 100%, continuous operation unless stated otherwise |
| acceptable voltage tolerance | ±10% |
| non-standard duty cycle | For coils with duty cycle < 100% the maximum duty cycle time is 2 min for systems 5, 7 and 9, respectively 3 min for systems 13, 16 and 19 according to VDE 0580. |
| protection class | IP65 according to DIN EN 60529 (DIN 40050) only with correctly mounted connector and profile seal. |
| non-standard version | please note – minimum quantities must be ordered for non-standard types |

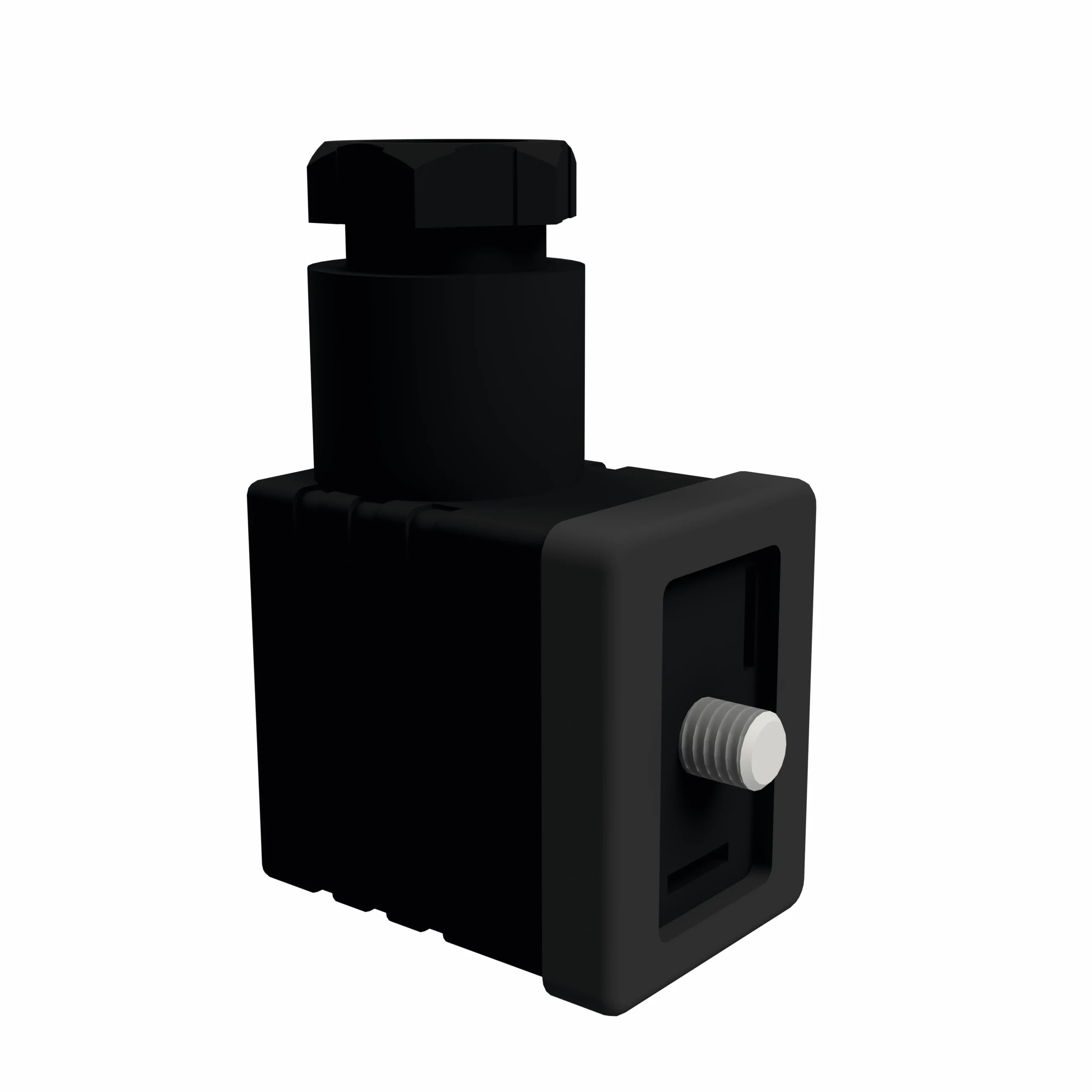

Connectors
| connectors standard | EN 175301-803 (DIN 43650) form A and C, form D = similar EN 175301-803 form B |
|---|---|
| design | connector with screw connection |
| cable entry | PG 7, PG 9 or PG 11 |
| temperature range | -40°C to +100°C, with electronic components max. +80°C |
| material | PA 6 glass fiber-reinforced, contact material silver-plated |
| scope of delivery | connector including profile seal in NBR and center screw M3 |
| tightening torque | 0,5 Nm for form A and D, 0,2 Nm for form C |
| max. cable diameter | PG 7 = 4 – 6 mm, PG 9 = 5 – 7 mm, PG 11 = 6 – 9 mm |
| connectors standard | EN 175301-803 (DIN 43650) form A and C, form D = similar EN 175301-803 form B |
|---|---|
| design | connector with screw connection |
| cable entry | PG 7, PG 9 or PG 11 |
| temperature range | -40°C to +100°C, with electronic components max. +80°C |
| material | PA 6 glass fiber-reinforced, contact material silver-plated |
| scope of delivery | connector including profile seal in NBR and center screw M3 |
| tightening torque | 0,5 Nm for form A and D, 0,2 Nm for form C |
| max. cable diameter | PG 7 = 4 – 6 mm, PG 9 = 5 – 7 mm, PG 11 = 6 – 9 mm |
| voltage | direct and alternating current |
|---|---|
| protection class | IP65 according DIN EN 60529 (DIN 40050), if correctly mounted |
| contact load | see specifications of the particular type |
| LED colour | yellow |
| max. wire cross section | 1,5 mm² rigid wire at form A and D, 1 mm² rigid wire at form C |
| non-standard version | flat seal in NBR or in silicone, profile seal in silicone |
