2/2 - Way Solenoid Valve
Type 34
Description

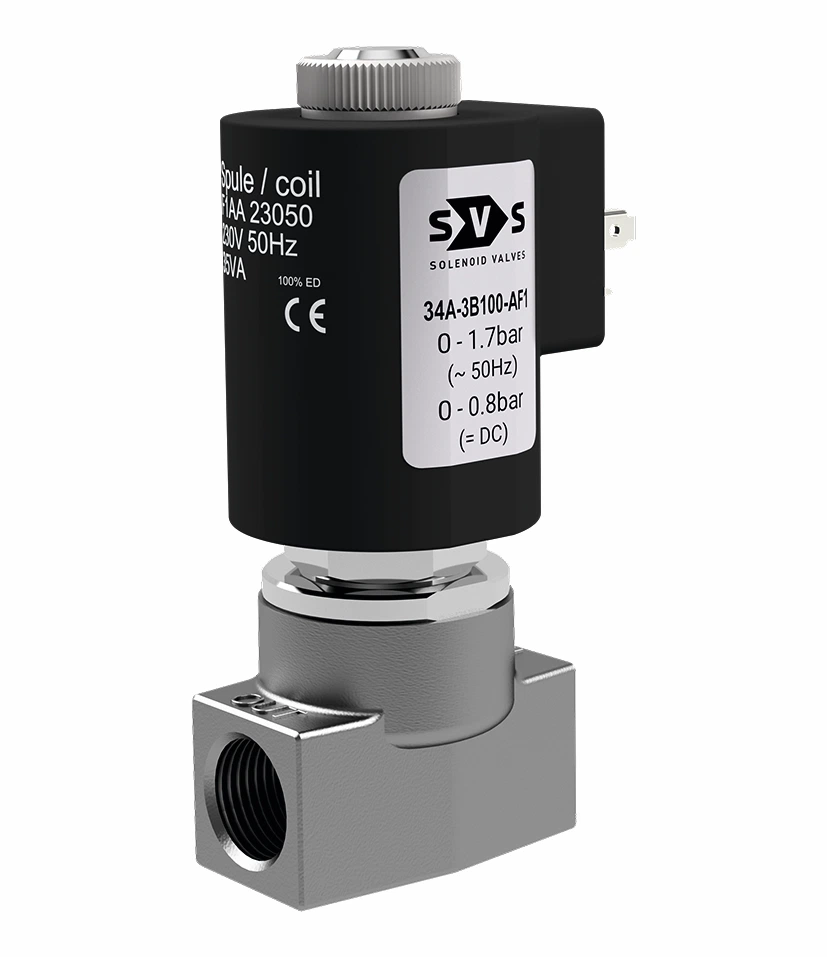

Valve type 34 is a 2/2-way direct acting solenoid valve for
general applications with gases and liquids for low to medium
pressure.
Construction
| Body material | stainless steel |
| Internal parts | stainless steel |
| Sealing material | NBR, EPDM, FPM, PTFE, FFPM |
| Voltages | 24 V DC, 24 V 50Hz, 230 V 50Hz |
| Connections | G1/4 - G3/8 |
On Request
Valve for oxygene applications
Non-standard coil voltages
Higher ambient temperature range
Non-standard equipment
Manual override
Switching Pressure
| Orifice in mm | Normally closed in bar | Normally open in bar |
|---|---|---|
| 1,5 | 40,0 | 30,0 |
| 2,0 | 40,0 | 20,0 |
| 2,5 | 40,0 | 14,0 |
| 3,0 | 40,0 | 10,5 |
| 3,5 | 31,0 | 8,0 |
| 4,0 | 20,0 | 6,0 |
| 5,0 | 18,0 | 4,0 |
| 6,0 | 12,0 | 4,0 |
| 8,0 | 2,5 | - |
| 10,0 | 1,7 | - |
DETAILED INFORMATION
General
| type of construction | 2/2-way poppet valve, normally closed NC or normally open NO, coil 360° rotatable |
| operation | electrically, on request: manual override |
| ports | G1/4 - G3/8 |
| ambient temperature | -20°C to +50°C, higher acceptable ambient temperature range on request |
| fluid temperature | dependent on sealing material and coil |
| viscosity | max. 21 mm²/s (cst) |
| material | body and plunger tube: AISI 303 internal parts: stainless steel sealing: see type selection |
| mounting | installation into fixed piping systems or by use of 2 threads on the bottom side |
| installation | in any position, preferable vertically fixed solenoid coil |
| unit of supply | without connector |
Electrical
| voltage | DC voltage or AC voltage |
| standard voltages | 24 V DC, 24 V 50Hz, 230 V 50Hz |
| non-standard voltage on request | 6 V - 200 V DC, 12 V - 240 V 50Hz or 60Hz |
| acceptable voltage tolerance | ±10% |
| power consumption | see specifications at solenoid coils |
| coil temperature classification | temperature class F (155°C), winding & coil E3 temperature class H (180°C) |
| duty cycle | 100%, continuous operation |
| protection class | IP65 according DIN EN 60529 (DIN 40050) with correctly mounted connector |
Pneumatic – Hydraulic
| fluid | all liquids and gases, non-aggressive to the used material |
| max. valve body pressure | PN 64 up to DN 4 mm, PN 25 from DN 5 – 10 mm |
| response time | depending on operating pressure and fluid |
| non-standard equipment on request | coil type with cable, coils for temperature class H (180°C), higher differential pressure, PTFE seal |
