2/2-WAY ARMATURE SET

SYSTEM 07 VARIANTS

Description

The armature system for valves type 12 and type 31 with its
diameter of 7 mm is also used on a variety of customized

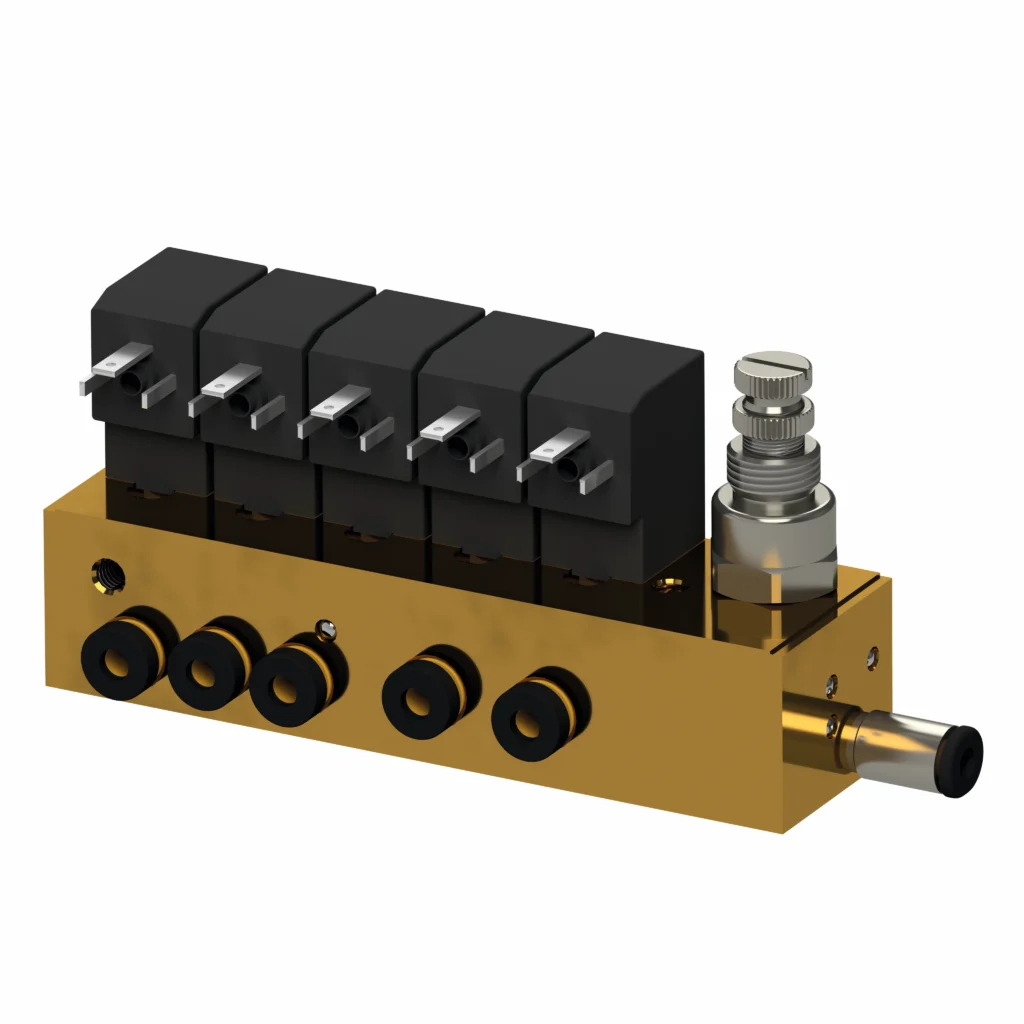

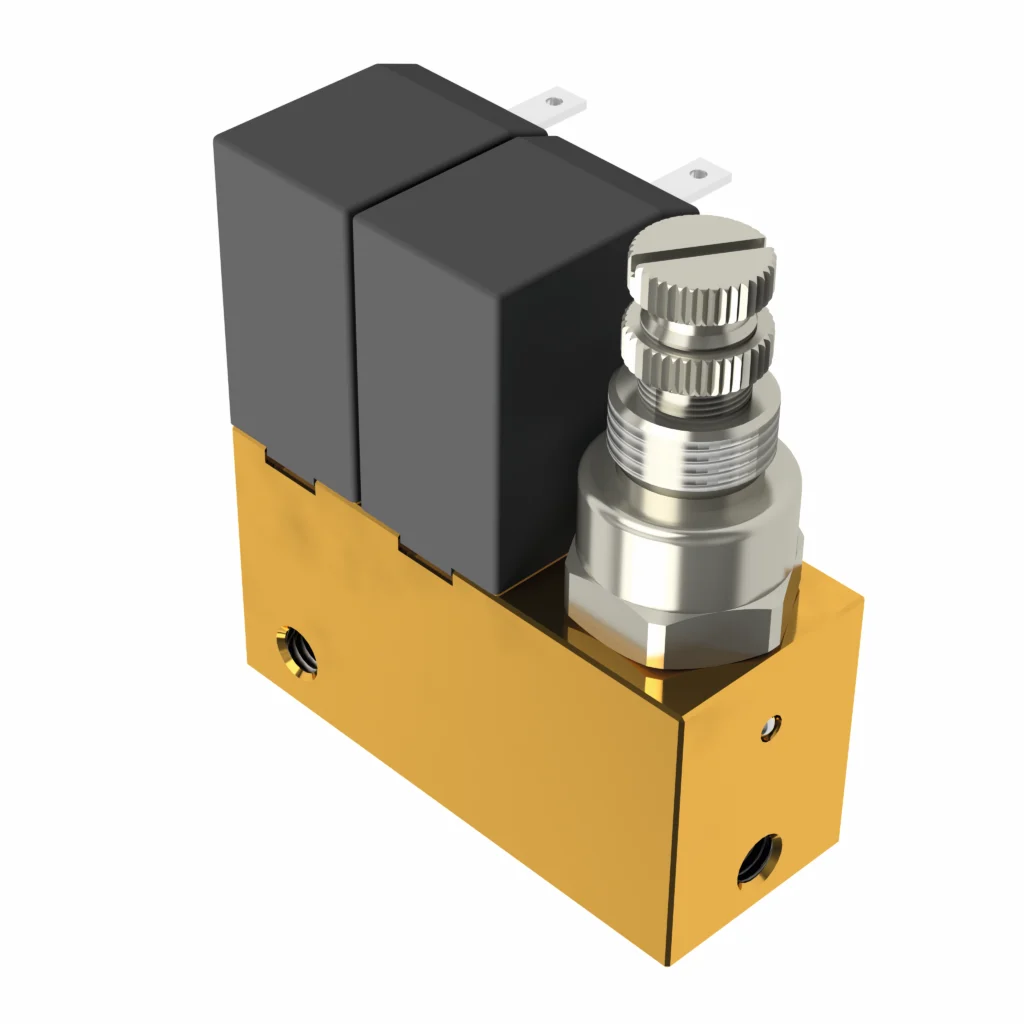

solutions for gases and liquids. Typical applications are small
valve manifolds with several valves and additional functionality,
customized valve body geometries or the use as a pilot valve.
Technical specifications are the same as for valves type 12 and
31 but can also be customized.

Construction

Body materialas desired
Internal partsstainless steel
Sealing materialNBR, EPDM, FPM, others
Voltages24 V DC, 24 V 50Hz, 230 V 50Hz, others
Connectionsas desired

On Request

Valve for oxygene applications
Non-standard coil voltages
