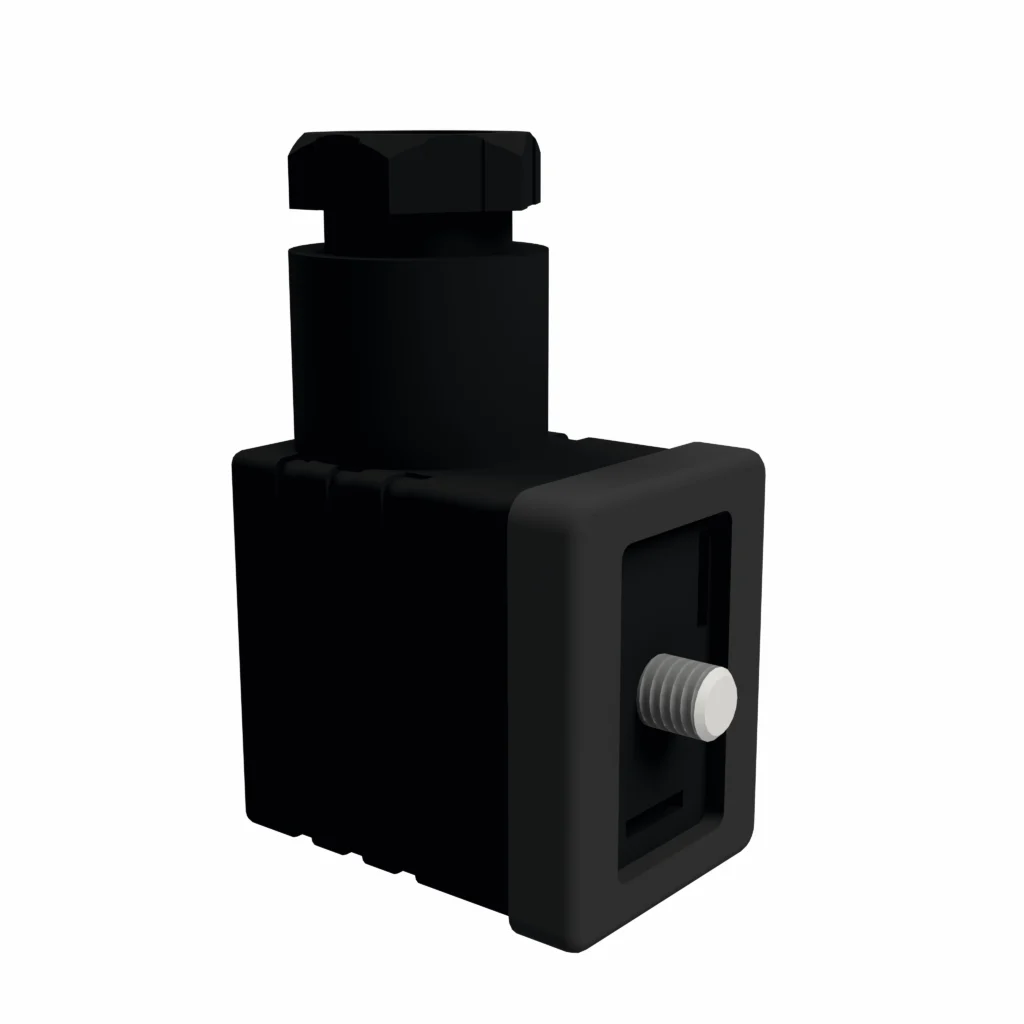

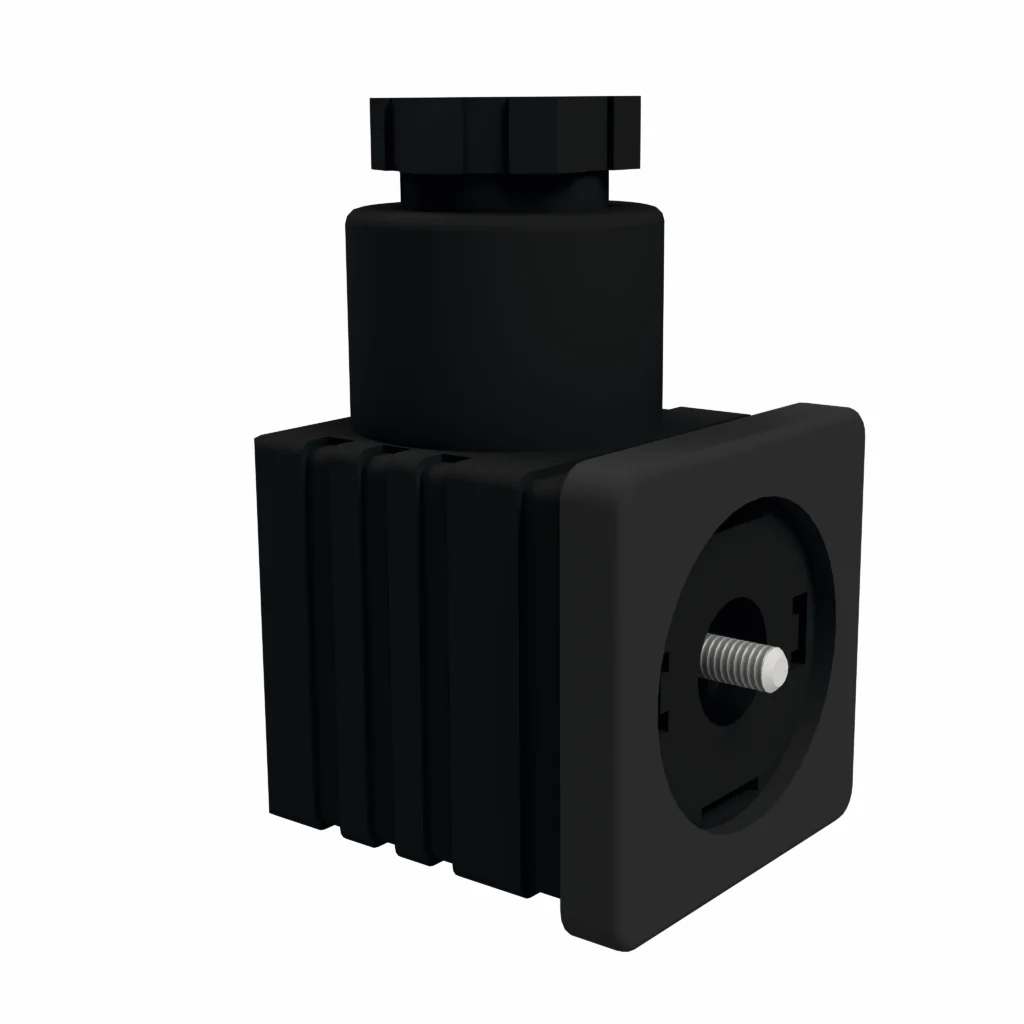

| connectors standard | EN 175301-803 (DIN 43650) form A and C, form D = similar EN 175301-803 form B |
| design | connector with screw connection |
| cable entry | PG 7, PG 9 or PG 11 |
| temperature range | -40°C to +100°C, with electronic components max. +80°C |
| material | PA 6 glass fiber-reinforced, contact material silver-plated |
| scope of delivery | connector including profile seal in NBR and center screw M3 |
| tightening torque | 0,5 Nm for form A and D, 0,2 Nm for form C |
| max. cable diameter | PG 7 = 4 – 6 mm, PG 9 = 5 – 7 mm, PG 11 = 6 – 9 mm |
